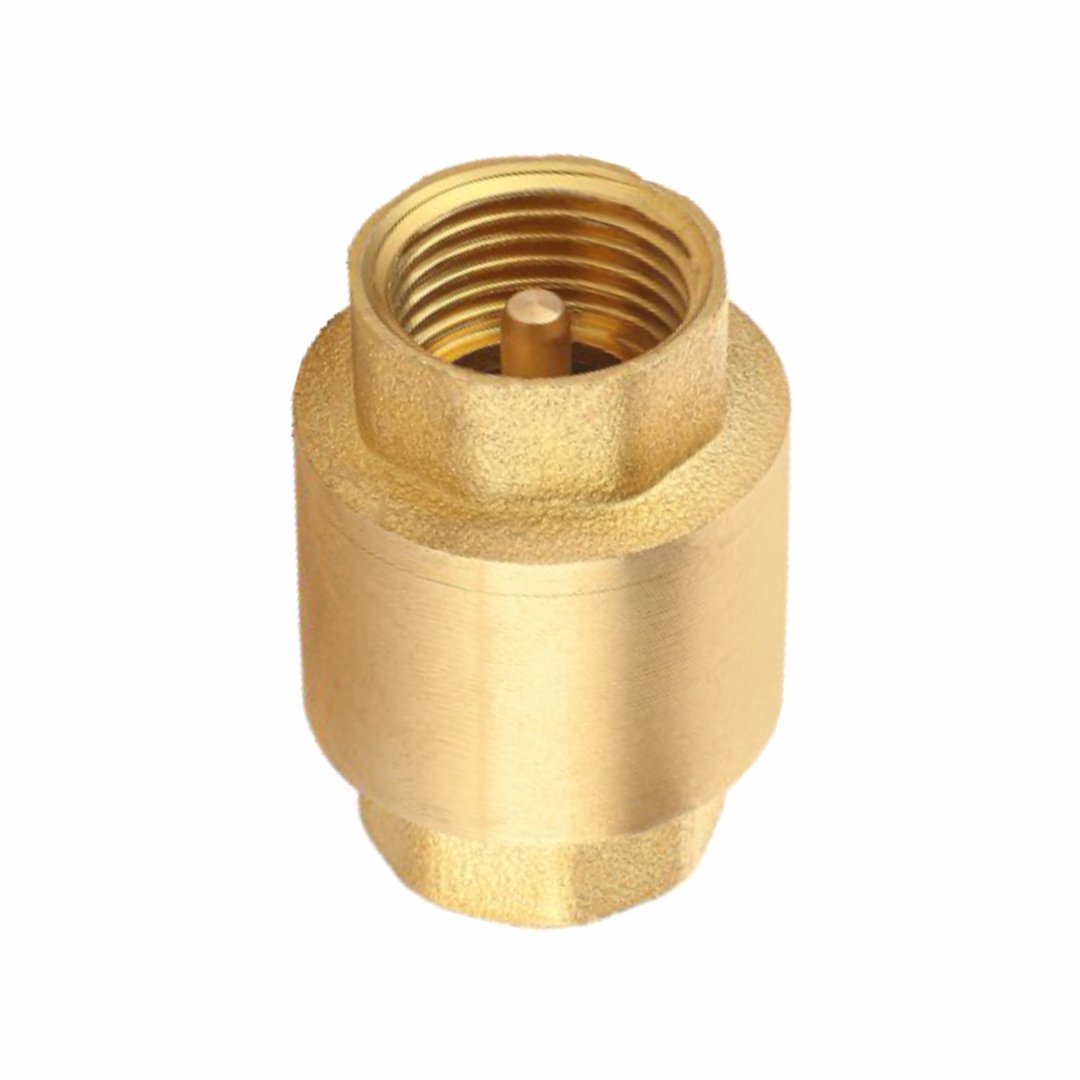

Screwed in Bonnet.
Material - Full brass forged body & NBR Seal.
Suitable for both Horizontal and Vertical Lines.
Permits flow in one direction and shuts automatically if the flow reverses.
Disc is guided in Body as well as in Bonnet.
Natural Brass Finish.
MATERIAL SPECIFICATION
| Name of Part | Material | Qty |
|---|---|---|
| Body | Forged Brass CW614N | 1 |
| Spring | Stainless Steel | 1 |
| Disc | Brass CW614N | 1 |
| Disc Washer | NBR | 1 |
| Bonnet | Forged Brass CW614N | 1 |
SIZES/DIMENSIONS
| Item Code | Size | Weight |
|---|---|---|
| ABP07-15 | 1/2" (lSMM) | 120gm |
| ABP07-20 | 3/4" (20MM) | 155gm |
| ABP07-25 | l" (25MM) | 215gm |
| ABP07-32 | 1.1/4" (32MM) | 450gm |
| ABP07-40 | 1.1/12" (40MMM) | 600gm |
| ABP07-50 | 2" (50MM) | 765gm |
